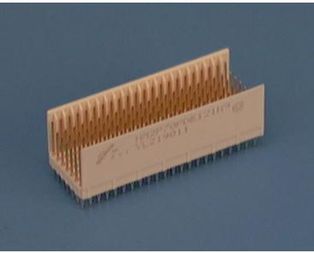

HM2P70PAE121AALF

Millipacs is a 2mm modular, Board-To-Board and CableTo-Board Interconnection system in Hard Metric (HM) configuration designed in accordance with IEC 917, IEC 61076-4-101 and Telcordia GR-1217-CORE standards.2mm HM connector is one of the most popular backplane connector system. Millipacs series offers attractive propositions for all market segments due to the cost effectiveness, user flexibility, standardization and availability of its broad range. Millipacs connector system is extensively used for chassis-based packaging in the communications, data, medical and industrial & instrumentation segments.Millipacs series HM vertical headers are offered in standard signal modules of 5 and 8 rows. 5 row modules are available up to maximum of 125 signal contacts and 8 row modules are available up to maximum of 200 signal contacts per 50 mm length. Besides signal module, hybrid modules are available with signal pins, power and coax contacts. Vertical header mates with right angle receptacle, vertical receptacle and cable connector via shroud.

• Hard Metric
• 2mm pitch
• Modular and Scalable by 25mm to 50mm
• Three levels of mating contact lengths and different terminal lengths.
• Multipurpose center, Coding feature, Guiding feature and location peg
• SI performance
• Mating compatibility with Millipacs® high speed (HS) Right Angle Receptacle
• Different length contacts at any position
• Hybrid connectors with signal, power and coaxial contacts
• Two outer rows
