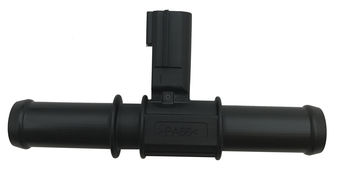

GE-2102

GE-2102 is a GE series inline flow-through fluid temperature sensor that provides inline fluid temperature measurement in heat exchange systems. Its design allows for convenient placement of the sensor at inlet/outlet locations for temperature control, or cooling/heating efficiency measurements, in devices, such as heat exchangers, radiators, and Electric Vehicle (EV) battery packs. The Inline Flow-Through Fluid Temperature Sensor is based on NTC thermistor technology. When applied to a voltage divider system, a voltage signal that is proportional to the change in fluid temperature is obtained. The voltage divider system is generally contained in the OEM/Tier 1 control module. Applications include engine coolant temperature, battery pack coolant line temperature, process flow management, HVAC water management, home appliances.

• High sensitivity, wide application range, compact design
• USCAR sealed connection system
• 0.50inch (12.70mm) hose size, -8 SAE J1231 hose dash size
• Polyamide 6/6 housing material, black color
• Resistance is 10Kohm ±1.5% at 77°F (25°C)
• Operating temperature range from -40°C to 120°C
