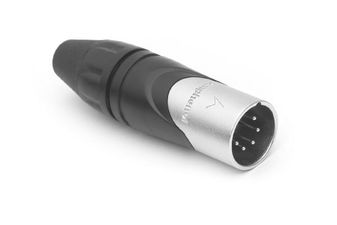

AX5M

Name: AX5M
Brand: Amphenol
SKU: AX5M
Availability: InStock

Click image to enlarge

Manufacturer:Amphenol

Product Category: Connectors, Audio & Video Connectors, Other Audio & Video Connectors

Avnet Manufacturer Part #: AX5M

Secondary Manufacturer Part#: AX5M

RoHS 10 Compliant
Tariff Charges

Description

Technical Attributes

Find Similar Parts

	Description	Value
	Base/Housing Material	Die-cast Zinc Alloy
	Body Orientation	Straight
	Contact Material	Brass
	Contact Plating	Silver
	Gender	Plug
	Lead Finish	Silver
	Mounting	Cable Mount
	Operating Temperature	-25 to 75 °C
	Product Diameter	21.2 mm
	Product Dimensions	21.2 x 74
	Product Length	74 mm
	Termination Method	Solder

ECCN / UNSPSC / COO

Description	Value
Country of Origin:	RECOVERY FEE
ECCN:	EAR99
HTSN:	8536694020
Schedule B:	8536694040

In Stock : 0

Additional inventory

Factory Lead Time: 112 Weeks

Price for: Each

Quantity:

Min:300 Mult:100

USD $:

300+

$4.58667

500+

$4.48501

800+

$4.42159

1500+

$4.35168

3000+

$4.2627
