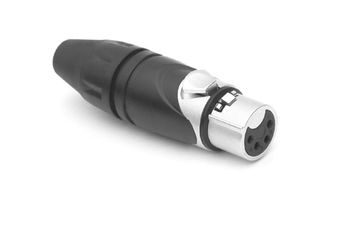

AX4F

Name: AX4F
Brand: Amphenol
SKU: AX4F
Availability: InStock

Click image to enlarge

Manufacturer:Amphenol

Product Category: Connectors, Audio & Video Connectors, Other Audio & Video Connectors

Avnet Manufacturer Part #: AX4F

Secondary Manufacturer Part#: AX4F

RoHS 10 Compliant
Tariff Charges

Description

Technical Attributes

Find Similar Parts

	Description	Value
	Base/Housing Material	Die-cast Zinc Alloy
	Body Orientation	Straight
	Contact Material	Phosphor Bronze
	Contact Plating	Tin
	Gender	Receptacle
	Lead Finish	Tin
	Mounting	Cable Mount
	Operating Temperature	-25 to 75 °C
	Product Diameter	21.2 mm
	Product Dimensions	21.2 x 74
	Product Length	74 mm
	Termination Method	Solder

ECCN / UNSPSC / COO

Description	Value
Country of Origin:	RECOVERY FEE
ECCN:	EAR99
HTSN:	8536694020
Schedule B:	8536694020

In Stock : 0

Additional inventory

Factory Lead Time: 161 Weeks

Price for: Each

Quantity:

Min:7 Mult:1

USD $:

$13.64313

13+

$11.23992

25+

$9.22725

50+

$8.8176

100+

$8.398
