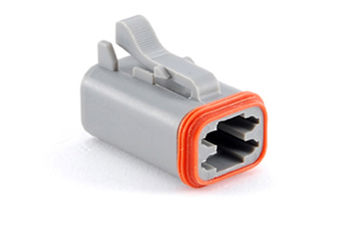

AT06-4S
Automotive Connector Housing, AT, Plug, 4 Ways, AT Series Socket Contacts, Thermoplastic Body
Click image to enlarge
Manufacturer:Amphenol
Product Category:
Connectors, Discrete Housing Connectors
Avnet Manufacturer Part #: AT06-4S
Secondary Manufacturer Part#: AT06-4S
-
RoHS 10 Compliant -
Tariff Charges
The AT06-4S is a 4-way Plug with socket-type contacts. The AT series connector design incorporates an integral latching system that ensures a definitive electrical and mechanical connection. Connector housing is manufactured with a thermoplastic material that is not only durable, but has excellent UV resistance, dielectric/mechanical properties. The sealing system is comprised of a front and rear silicone, multi-sealing perimeter against environmental ingress. Contacts are derived from quality copper alloy to ensure an electrically-reliable connection.
- 14 to 20AWG Wire size
- 13A current rating
- 1000Mohm at 25°C minimum insulation resistance
- IP67 protection rating (moisture resistance)
- 100 mating cycles
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Thermoplastic | ||
| Straight | ||
| Plug | ||
| Grey | ||
| 13 A | ||
| Cable Mount | ||
| 4 | ||
| 1 | ||
| 2 | ||
| -55 to 125 °C | ||
| 30.8 mm | ||
| 18.2 x 30.8 mm | ||
| 18.2 mm | ||
| AT06 | ||
| Power | ||
| 20 to 14 AWG |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8538908180 |
| Schedule B: | 8538907020 |
Ships
in 1 bus. day
