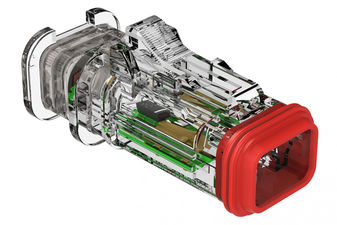

AT06-2S-LED24V01-OMC

AT06-2S-LED24V01-OMC is a 2-position led overmold plug. It has a dielectric withstanding voltage of less than 2 milliamps current leakage at 1500volts AC. Applications include heavy duty, transportation, marine, diagnostic, military, alternative energy, agricultural as well as other demanding interconnect applications.

• Wire range from 14-20AWG
• 13A current, socket contact
• 24V voltage, clear color
• Rectangular shape
• Natural polycarbonate housing material, green LED
• Seal diameter range from .088 in - .145 inch
• Silicone elastomer seal material, standard diameter rear seal (Red)
• Insulation resistance is 1000 megohms at 25°C
• >100 mating cycle durability, IP67, IP68, IP69K IP rating
• Operating temperature range from -40°C to +85°C
