ACJD-RED

Name: ACJD-RED
Brand: Amphenol
SKU: ACJD-RED
Availability: InStock

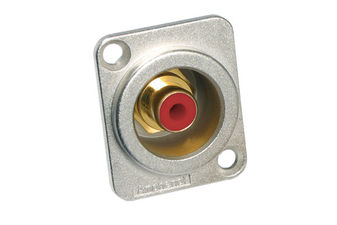

RCA D Type Chassis Mount, Female, Gold Plated Contacts, Red Insulation

Click image to enlarge

Manufacturer:Amphenol

Product Category: Connectors, Audio & Video Connectors, RCA Connectors

Avnet Manufacturer Part #: ACJD-RED

Secondary Manufacturer Part#: 23AC1098

RoHS 10 Compliant
Tariff Charges

Description

Technical Attributes

Find Similar Parts

	Description	Value
	Body Orientation	Straight
	Contact Plating	Gold
	Gender	Receptacle
	Lead Finish	Gold
	Mounting	Panel Mount
	Number of Contacts	3 POS
	Product Depth	26.3 mm
	Product Dimensions	26 x 26.3 x 31
	Product Height	31 mm
	Product Length	26 mm
	Termination Method	Solder

ECCN / UNSPSC / COO

Description	Value
Country of Origin:	RECOVERY FEE
ECCN:	EAR99
HTSN:	8536904000
Schedule B:	8536904000

In Stock : 0

Additional inventory

Factory Lead Time: 777 Weeks

Price for: Each

Quantity:

Min:1 Mult:1

USD $:
