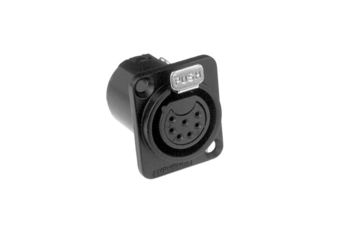

AC7FDZB

Name: AC7FDZB
Brand: Amphenol
SKU: AC7FDZB
Availability: InStock

Click image to enlarge

Manufacturer:Amphenol

Product Category: Connectors, Audio & Video Connectors, Other Audio & Video Connectors

Avnet Manufacturer Part #: AC7FDZB

Secondary Manufacturer Part#: AC7FDZB

RoHS 10 Compliant
Tariff Charges

Description

Technical Attributes

Find Similar Parts

	Description	Value
	Base/Housing Material	Die-cast Zinc Alloy
	Body Orientation	Straight
	Contact Material	Brass
	Contact Plating	Silver
	Gender	Receptacle
	Lead Finish	Silver
	Mounting	Panel Mount
	Number of Contacts	3 POS
	Operating Temperature	-25 to 75 °C
	Product Depth	32 mm
	Product Dimensions	26 x 32 x 31
	Product Height	31 mm
	Product Length	26 mm
	Termination Method	Solder

ECCN / UNSPSC / COO

Description	Value
Country of Origin:	RECOVERY FEE
ECCN:	EAR99
HTSN:	8536694040
Schedule B:	8536694040

In Stock : 0

Additional inventory

Factory Lead Time: 112 Weeks

Price for: Each

Quantity:

Min:200 Mult:10

USD $:

200+

$15.54667

220+

$15.20209

420+

$14.98715

1000+

$14.75016

2000+

$14.44858
