86130162323345E1LF

Name: 86130162323345E1LF
Brand: Amphenol
SKU: 86130162323345E1LF
Availability: InStock

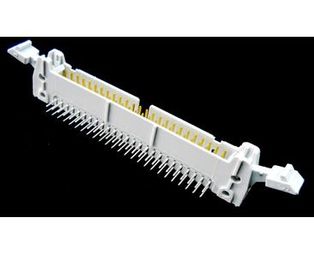

Click image to enlarge

Manufacturer:Amphenol

Product Category: Connectors, PC Board, Pin & PCB Headers

Avnet Manufacturer Part #: 86130162323345E1LF

Secondary Manufacturer Part#: 86130162323345E1LF

RoHS 10 Compliant
Tariff Charges

Description

Technical Attributes

Find Similar Parts

	Description	Value
	Connector Body Material	Polyester
	Connector Orientation	Right Angle
	Contact Material	Copper Alloy
	Contact Plating	Gold
	Gender	Header
	Mounting	Through Hole
	Pitch Spacing	2.54 mm
	Termination Method	Solder

ECCN / UNSPSC / COO

Description	Value
Country of Origin:	RECOVERY FEE
ECCN:	EAR99
HTSN:	8536694040
Schedule B:	8536694040

In Stock : 0

Additional inventory

Factory Lead Time: 70 Weeks

Price for: Each

Quantity:

Min:5400 Mult:360

USD $:

5400+

$0.55217

10800+

$0.54938

21600+

$0.5466

43200+

$0.54381

86400+

$0.54102
