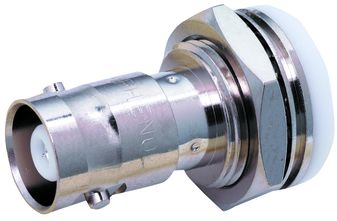

27025

MHV (Miniature High Voltage) connectors are bayonet locking interconnects used for high voltage applications up to 5000 volts. They are similar in size to, but not designed to mate with the BNC interface. MHV connectors conform to MIL-STD-348 and offer a quick-connect functionality that is used where transmission of high voltage is required.

• Used for high voltage applications up to 5000 volts DC
• Quick connect functionality
• Conforms to MIL 348 standards
• Nickel plating
• APPLICATIONS
• Transmission Lines
• High Voltage Power Supplies
• Nuclear Control Instrumentation
• X-Ray
• Electrical
• Impedance: Non-constant
• Current Rating: 5 amp max
• Voltage Rating (Sea Level): 5000 volts peak
• Environmental
• Temperature Range: -65°C to +165°C
• Weatherproof: All
• Hermetic Seals Pass: helium leak test of 2x 10-8 cc/sec
• Mechanical
• Mating: 2 stud bayonet lock/ braid clamp
• Cable Affixment: Standard clamp, MIL clamp, and original crimp (see description)
