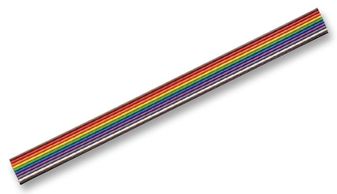

111-2803-010

Bonded planar cable was originally developed, patented and introduced by Spectra-Strip. Bonded flat ribbon cables reduce both cost and packaging volume because they can be contour-formed, are self-supporting with minimum clamping, and can dissipate heat faster than round multi-conductor cable. They are used today in a great variety of interconnective systems using point-to-point wiring applications. These flat cables are fully compatible with standard termination techniques such as soldering, crimping and wire wrapping.Spectra-Strip standard bonded cable consists of stranded or solid round conductors insulated with color-coded PVC and bonded together by a patented process to form a flat ribbon.

• Low cost point-to-point wiring
• Insulation easily separated for circuit routing
• Color coded
• Standard termination techniques
• Versatile applications
• Conductors: 22-30 AWG, 7 and 19 strand, tinned copper
• Insulation: 0.01 nom. wall, flame retardant PVC
• Number of conductors: 2 to 100
• Color code: Brown, Red, Orange, Yellow, Green, Blue, Violet, Gray, White, Black (repeat)
• Voltage rating: 300 V per UL
• Insulation resistance: 1010 O - 10 ft., min.
• UL style number: Cable style 2697, cable style 2693
• Temperature rating: 2697 (80°C, 300V), 2693 (105°C, 300V)
• CSA: Available upon request
