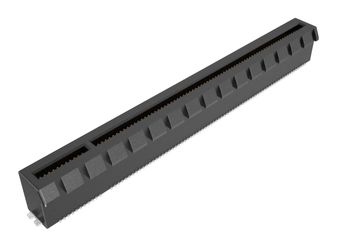

10146070-113Y0LF

10146070-113Y0LF is a PCIe Gen 5 x16 vertical SMT card edge connector. This 1.00mm pitch, vertical card edge connector enables all generations of PCI Express® signalling in desktop PCs, workstations, and servers. The connector design supports 2.5GT/s (Gen 1), 5.0GT/s (Gen2), 8.0GT/s (Gen 3), and the recent upgrade to 16GT/s (Gen4), even further to 32GT/s (Gen 5) per differential signal pair. Target markets/applications are desktop PCs, servers, workstations, desktop PCs, notebook PCs.

• Able to meet different customer soldering requirements
• Provides excellent performance and additional options for extreme bandwidth application
• Backward mating and footprint compatible
• Capable to support up to 32GT/s without altering design
• Customers can upgrade directly to next-generation systems without additional cost in system redesign
• Meets environmental, health and safety requirements, UL file number E66906
• Low-halogen material meets next-generation requirements
• Black colour, high - temperature nylon, glass - filled, UL94V-0 housing
• Operating temperature range from -55°C to +105°C, 29.9VDC voltage rating
• 0.76μm (30μin.) gold over 1.27μm (50μin.) nickel plating contact area
