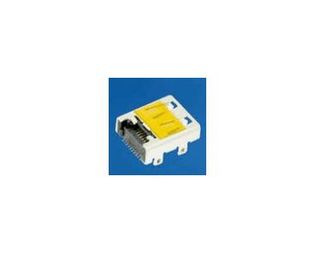

10118242-001RLF
Conn HDMI Receptacle 19 POS 0.4mm Solder RA SMD Single Port T/R
Click image to enlarge
Manufacturer:Amphenol
Product Category:
Connectors, Audio & Video Connectors, HDMI Connectors
Avnet Manufacturer Part #: 10118242-001RLF
Secondary Manufacturer Part#: 28X2625
-
RoHS 10 Compliant -
Tariff Charges
Compared to HDMI A, B, C and E type, HDMI D type is Micro type, an extremely small high reliability connector comply with physical, electrical and environmental requirements of HDMI standard. Receptacles are available for use in High-Definition display applications. FCI HDMI D type is one of the best options for next-generation compact Audio / Video data PCB layout aiming at HDMI Rev.1.4 and 3D signal transmission.
- Size reduction
- SMT contacts, DIP legs
- High durability (5000 cycles)
- Black LCP housing
- UL94V-0 Flammability rating
- Stainless steel with matte tin over nickel shielding
- Initial 10mO maximum contact resistance
- Initial 1000MO minimum insulation resistance
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Glass Filled LCP (Liquid Crystal Polymer) | ||
| Right Angle | ||
| Gold Over Nickel | ||
| Copper Alloy | ||
| Receptacle | ||
| Gold Flash Over Nickel | ||
| Surface Mount | ||
| 19 POS | ||
| 1 | ||
| -30 to 80 to 85 °C | ||
| 0.4 mm | ||
| 7.5 mm | ||
| 6.5 x 7.5 x 2.9 mm | ||
| 2.9 mm | ||
| 6.5 mm | ||
| 10118242 | ||
| Solder |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694040 |
