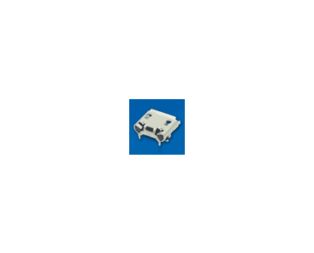

10103594-0001LF
Conn Micro USB Type B Receptacle 5 POS 0.65mm RA SMD 1 Port
Click image to enlarge
Manufacturer:Amphenol
Product Category:
Connectors, I/O Connectors, USB Connectors
Avnet Manufacturer Part #: 10103594-0001LF
Secondary Manufacturer Part#: 10103594-0001LF
-
RoHS 10 Compliant -
Tariff Charges
The 10103594-0001LF is a micro-USB type-B Receptacle Connector, comply with physical, electrical and environmental requirements of micro-USB standard (USB 2.0). Space receptacles and plugs are available in a wide variety of mounting and termination con
- Standard, SMT + DIP
- Extremely Small Size
- High Reliability
- High Durability, Fully Mated Condition is Confirmed by a Definite Tactile Sensation
- Halogen-free
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Thermoplastic|Stainless Steel | ||
| Right Angle | ||
| Copper Alloy | ||
| Gold Over Nickel | ||
| Receptacle | ||
| Gold Flash Over Nickel | ||
| 265 °C | ||
| Surface Mount | ||
| 5 POS | ||
| 1 | ||
| -30 to 80 to 85 °C | ||
| 0.65 mm | ||
| 5.62 mm | ||
| 8.04 x 5.62 x 2.99 mm | ||
| 2.99 mm | ||
| 8.04 mm | ||
| 10103594 | ||
| Micro USB Type B | ||
| USB2.0 |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694040 |
Ships
in 1 bus. day
