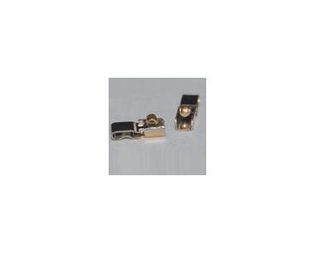

10094594-009RLF

Name: 10094594-009RLF
Brand: Amphenol
SKU: 10094594-009RLF
Availability: InStock

Click image to enlarge

Manufacturer:Amphenol

Product Category: Connectors, Other Connectors

Avnet Manufacturer Part #: 10094594-009RLF

Secondary Manufacturer Part#: 10094594-009RLF

RoHS 10 Compliant
Tariff Charges

Description

Technical Attributes

Find Similar Parts

	Description	Value
	Body Orientation	Straight
	Lead Finish	GXT over Nickel
	Number of Contacts	1 POS
	Operating Temperature	-40 to 85 °C
	Pin Count	1
	Product Dimensions	1.4 x 3.48 x 1.3
	Type	Antenna Connector

ECCN / UNSPSC / COO

Description	Value
Country of Origin:	RECOVERY FEE
ECCN:	EAR99
HTSN:	8536694040
Schedule B:	8536694040

In Stock : 0

Additional inventory

Factory Lead Time: 49 Weeks

Price for: Each

Quantity:

Min:40000 Mult:40000

USD $:

40000+

$0.06014

80000+

$0.05689

160000+

$0.0554

240000+

$0.05397

320000+

$0.05262
