10029364-001LF
I/O Connector, 22 Contacts, Receptacle, SATA, Surface Mount, PCB Mount

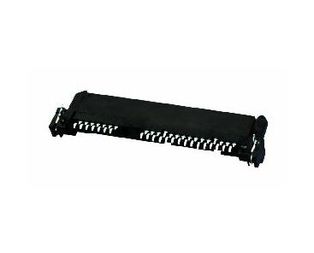

Click image to enlarge
Manufacturer:Amphenol
Product Category:
Connectors, I/O Connectors, SATA/eSATA/SAS Connectors
Avnet Manufacturer Part #: 10029364-001LF
Secondary Manufacturer Part#: 10029364-001LF
-
RoHS 10 Compliant -
Tariff Charges
The 10029364-001LF is a 22-way surface-mount SATA Receptacle with gold-plated copper alloy contacts. The connector with black high temperature thermoplastic housing and tin over nickel solder tail.
- UL94V-0 Flammability rating
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| High Temperature Thermoplastic | ||
| Right Angle | ||
| Copper Alloy | ||
| Gold Over Nickel | ||
| Receptacle | ||
| Tin Over Nickel | ||
| 260 °C | ||
| Surface Mount | ||
| 22 POS | ||
| 1 | ||
| 0 to 85 °C | ||
| 1.27 mm | ||
| 12.4 mm | ||
| 42.4 x 12.4 x 5.42 mm | ||
| 5.42 mm | ||
| 42.4 mm | ||
| 10029364 | ||
| Solder | ||
| SATA |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694040 |
