EK-V7-VC707-G

The Virtex-7 FPGA VC707 Evaluation Kit is a full-featured, highly-flexible, high-speed serial base platform using the Virtex-7 XC7VX485T-2FFG1761C and includes basic components of hardware, design tools, IP, and pre-verified reference designs for system designs that demand high-performance, serial connectivity and advanced memory interfacing. The included pre-verified reference designs and industry-standard FPGA Mezzanine Connectors (FMC) allow scaling and customization with daughter cards.

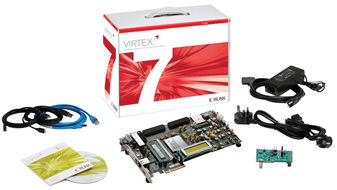

What's Included

• VC707 evaluation board featuring the Virtex-7 XC7VX485T-2FFG1761C FPGA
• Full seat Vivado Design Suite: Design Edition
• Node locked & Device-locked to the Virtex-7 XC7VX485T FPGA, with 1 year of updates and support
• Getting Started Guide (Web)
• Board Design Files (DxDesigner 2005, Allegro 16.3 – 16.5)
• AMS 101 evaluation board
• Cables & Power Supply
• 90-day limited warranty

• 40Gb/s Connectivity platform for high-bandwidth and high-performance applications using Virtex-7 VX485T FPGAs
• Hardware, design tools, IP, and pre-verified reference designs
• Advanced memory interface with 1GB DDR3 SODIM Memory up to 800MHz / 1600Mbps
• Enabling serial connectivity with PCIe Gen2x8, SFP+ and SMA Pairs, UART, IIC
• Supports embedded processing with MicroBlaze, soft 32bit RISC
• Develop networking applications with 10-100-1000 Mbps Ethernet (GMII, RGMII and SGMII)
• Expand I/O with the FPGA Mezzanine Card (FMC) interface
