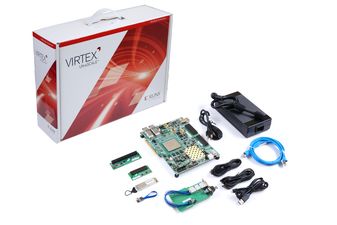

EK-U1-VCU118-G

EK-U1-VCU118-G is a AMD Virtex UltraScale+ FPGA VCU118 evaluation kit. It is the ideal development environment for evaluating the cutting edge Virtex UltraScale+ FPGAs. Virtex UltraScale+ devices provide the highest performance and integration capabilities in a FinFET node, including both the highest serial I/O and signal processing bandwidth, as well as the highest on-chip memory density. This kit is ideal for prototyping applications ranging from 1+ Tb/s networking and data centre to fully integrated radar/early-warning systems.

• Dual 80-bit DDR4 component memory, RLDRAM3 (2x36-bit) memory
• Dual QSFP28 interfaces, PCIe Gen3 x16 (VCCINT = 0.85V)
• VITA 57.4 FMC+ interface, VITA 57.1 FMC interface, Samtec FireFly interface
• JTAG header provided for use with AMD download cables such as the platform cable USB II
• 10/100/1000Mbps Ethernet (SGMII), dual 4x28Gbps QSFP28 cages
• PMBUS and system controller MSP430 for power, clocks, SD-Card and I2C bus switching
• Two 4 GB DDR4 component memory interfaces (five [256 Mb x 16] devices each)
• Users and status LEDs display
• 12V wall adapter or ATX power
