SM-K26-XCL2GI

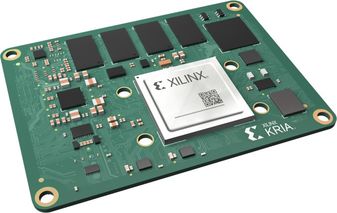

SM-K26-XCL2GI Xilinx® Kria™ K26 system-on-module (SOM) is a compact embedded platform that integrates a custom-built Zynq® UltraScale+™ MPSoC that runs optimally (and exclusively) on the K26 SOM with DDR memory, non-volatile storage devices, a security module, and an aluminium thermal heat spreader. The SOM is designed to be plugged into a carrier card with solution-specific peripherals. Key target applications include smart city, machine vision, industrial robotics, and AI/ML computing.

• Enabled encryption, 4GB 64bit wide DDR4 memory
• 512Mb QSPI, 16GB eMMC, 64Kb EEPROM
• TPM2.0 security module
• Two 240-pin connectors with access to user-configurable I/O
• SOC power supplies derived from a single +5V input
• PL I/O supplies customized through carrier card defined power rails
• Compact mechanical size with integrated thermal heat spreader
• Functional interfaces and input/output, MPSoC processing system (PS)
• MPSoC programmable logic (PL), boot sources and storage devices
• Industrial operating temperature range from -40°C to 100°C
