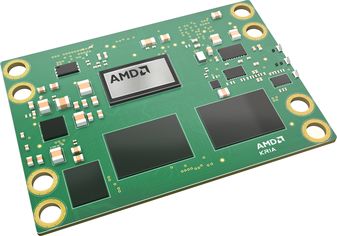

SM-K24-XCL2GC

SM-K24-XCL2GC is a K24 System-on-Module(commercial). It offers a smaller form factor and power efficiency for a wide range of target applications. Leverage its lower latency and deterministic performance for developing highly reliable end systems. The K24 SOM features an exclusive, custom-built XCK24 SoC based on the Zynq™ UltraScale+™ MPSoC architecture that has been configured for enhanced acceleration of motor control and DSP applications. Up to 2X latency advantage vs. a standard system on chip like Texas Instruments AM64xx and similar products for single-axis drives applications.

• Simplifying the design and productization of edge devices
• Develop power-efficient and highly deterministic industrial solutions for volume deployment
• Smaller form factor and connector compatible with K26 SOM-enabling migration
• Future ready for HW and SW changes, offering adaptability for sensor/interface as standards evolve
• Easy signal processing: pre-built HW acceleration with Vitis™ motor control libraries
• Quad-core Arm® Cortex®-A53 MPCore™ at 1.33GHz application processor
• Dual-core Arm Cortex-R5F MPCore at 553MHz real-time processor
• PCIe® Gen2 x4, 2x USB3.0, SATA 3.1, DisplayPort, high-speed PS connectivity (GTR)
• 2x (USB 2.0, SD/SDIO, UART, CAN 2.0B, I2C, SPI), 4x 32b GPIO general PS connectivity (MIO)
• Commercial: -2 speed grade, low voltage (0 to 85°C) temperature range
