SRBV150901

Name: SRBV150901
Brand: Alps Alpine
SKU: SRBV150901
Availability: InStock

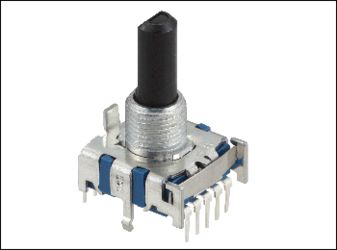

Switch Rotary SP5T 5 Flatted Shaft PC Pins 0.3A 16VDC

Click image to enlarge

Manufacturer:Alps Alpine

Product Category: Electromechanical, Switches, Rotary Switches

Avnet Manufacturer Part #: SRBV150901

Secondary Manufacturer Part#: SRBV150901

RoHS 10 Compliant
Tariff Charges

Description

Technical Attributes

Find Similar Parts

	Description	Value
	Max Processing Temp	260
	Mounting	Through Hole
	Operating Temperature	-10 to 85 °C
	Pin Count	16
	Pole Throw Configuration	SP5T
	Product Dimensions	16.2 x 18.5 x 27.5

ECCN / UNSPSC / COO

Description	Value
Country of Origin:	UNKNOWN
ECCN:	EAR99
HTSN:	8536509020
Schedule B:	8536509020

In Stock : 0

Additional inventory

Factory Lead Time: 112 Weeks

Price for: Each

Quantity:

Min:330 Mult:330

USD $:

330+

$2.29857

660+

$2.17432

1320+

$2.156

2640+

$2.145

5280+

$2.134
