SKHHAKA010

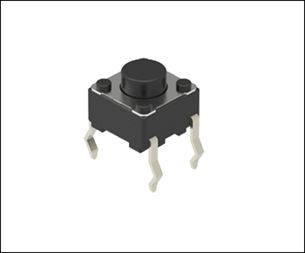

Tactile Switch, SKHH, Top Actuated, Through Hole, Round Button, 100 gf, 50mA at 12VDC
Click image to enlarge
Manufacturer:Alps Alpine
Product Category:
Electromechanical, Switches, Tactile Switches
Avnet Manufacturer Part #: SKHHAKA010
Secondary Manufacturer Part#: SKHHAKA010
-
RoHS 10 Compliant -
Tariff Charges
The SKHH series from Alps are 6mm square tactile switches with snap-in terminals. Typical applications include for various operation in audio equipment, office devices, communication devices, measuring devices, TVs, VCRs, car components and home appliances.
- Initial contact resistance of 100mohm maximum
- Snap-in type allows the switch to be mounted directly onto the PC board
- Part of the output terminal can also be applied as jumper leads, making circuit design easier
- Also available with anti-ESD ground terminal
- Available with standard knobs
- Maximum rating of 50mA at 12VDC
- Horizontal and vertical mounting
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 260 | ||
| 50 mA | ||
| 12 V | ||
| 500000 Cycles | ||
| Through Hole | ||
| -30 to 85 °C | ||
| SPST | ||
| 6 x 5 mm | ||
| N.O. | ||
| PC Pins |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536509031 |
| Schedule B: | 8536509030 |
Factory Lead Time:
