EC10E1220503
10mm Hollow Shaft Type Encoder 3-Pin Bulk
Click image to enlarge
Manufacturer:Alps Alpine
Product Category:
Sensors & Transducers, Motion & Position Sensors, Rotary Encoders
Avnet Manufacturer Part #: EC10E1220503
Secondary Manufacturer Part#: EC10E1220503
-
RoHS 10 Compliant -
Tariff Charges

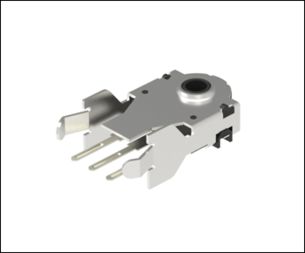

The EC10E1220503 from Alps is an incremental type encoder. It is a compact and long life encoder with 10mm size unique hollow shaft design. Typical applications include health care, PC & peripherals.
- Detent torque is 5±3mNm
- Mounting height is 11mm
- Number of detent is 24
- Number of pulse is 12
- Horizontal operating direction
- Operating temperature range from -5°C to 45°C
- Ratings 1mA at 5VDC
- Output signal of two phase A and B
- Minimum insulation resistance is 50Mohm at 50V DC
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Quadrature | ||
| 12 | ||
| Mechanical | ||
| Incremental | ||
| 2 | ||
| 24 Detents | ||
| 45 °C | ||
| -5 °C | ||
| Horizontal | ||
| EC10E Series | ||
| Without Push Switch | ||
| 100K Cycles | ||
| Through Hole | ||
| 3.6 mm | ||
| Through Shaft | ||
| 5 V | ||
| Solder Pin |
