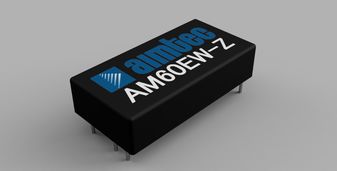

AM60EW-4812DZ
Isolated Through Hole DC/DC Converter, Household & ITE, 4:1, 60 W, 2 Outputs, Adj, Fixed, 12 V, 2.5 A, -12 V, -2.5 A, Regulated, DIP
Click image to enlarge
Manufacturer:Aimtec
Product Category:
Power Supplies, DC / DC Converters, Isolated Through Hole DC / DC Converters
Avnet Manufacturer Part #: AM60EW-4812DZ
Secondary Manufacturer Part#: AM60EW-4812DZ
-
RoHS 10 Compliant -
Tariff Charges
AM60EW-4812DZ is an AM60EW-Z series 60W DC to DC converter with wide 4:1 input range.
- Input voltage range from 18-75VDC, output voltage is ±12VDC
- Maximum output current is ±2.5A, isolation is 1600VDC
- Efficiency is 91%
- Remote on/off function
- No minimum load required
- Adjustable Output Voltage
- Over current, over voltage, over temperature & continuous short circuit protection, soft start
- Operating temperature -40°C to + 75°C
- Dimension (L x W x H) is 2.00 x 1.00 x 0.45inch
Technical Attributes
Find Similar Parts
| Description | Value |
|---|
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8504409580 |
| Schedule B: | 8504409585 |
Factory Lead Time:
