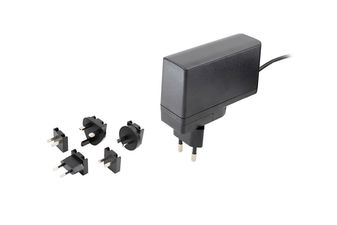

SLE24S1203B01
Power Supply AC to DC Single Output 12V 2A 24W Wall Mount
Click image to enlarge
Manufacturer:Advanced Energy
Product Category:
Power Supplies, AC / DC Converters, AC / DC External Plug In Adaptor Power Supplies
Avnet Manufacturer Part #: SLE24S1203B01
Secondary Manufacturer Part#: SLE24S1203B01
-
RoHS 10 Compliant -
Tariff Charges
SLE24S1203B01 is a SLE24 series 24W single output medical/industrial grade external plug-in adaptor. It includes overload, overvoltage, short circuit protection. Application includes medical, industrial. Approved by CB-medical: IEC60601-1, ANSI/AAMI ES60601-1, ITE: IEC62638-1, UL62638-1, UL-medical: CAN/CSA C22.2 NO. 60601-1, ITE: CAN/CSA C22.2 NO. 62638-1, TUV-medical: EN60601-1, ITE: EN62638-1, RCM-ITE: AS/NZS 62638.1.
- Medical and ITE safety approvals, class II, IP20 rating
- Suitable for medical equipment up to class BF
- Low leakage current =10µA (8.1V to 14V), DOE efficiency level VI
- CoC V5 Tier 2(2016), 0.075W standby power
- Up to 5000m operating altitude
- Input voltage and frequency range from 90VAC to 264VAC, 47Hz to 63Hz
- 12V output voltage, 2.0A current, 86.20% efficiency (average)
- 4000VAC input to output (2 x MOPP) isolation safety rating
- Operating temperature range from 0°C to 45°C
- Dimensions is 88mm x 30mm x 57mm
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 90V AC to 264V AC | ||
| 1 | ||
| Barrel Plug Center Positive 2.5mm x 5.5mm x 9.5mm | ||
| 2 A | ||
| 24 W | ||
| 12 V | ||
| Mains Plug Sold Separately | ||
| Fixed |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8504409510 |
| Schedule B: | 8504406001 |
