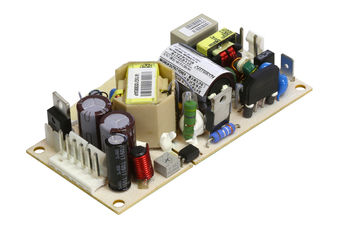

NPS23-M
AC/DC Open Frame Power Supply, Industrial, ITE & Medical, Adjustable, Fixed, 1 Output, 25 W, 12 V, 2.1 A
Click image to enlarge
Manufacturer:Advanced Energy
Product Category:
Power Supplies, AC / DC Converters, AC / DC Open Frame Power Supplies
Avnet Manufacturer Part #: NPS23-M
Secondary Manufacturer Part#: NPS23-M
-
RoHS 10 Compliant -
Tariff Charges
The NPS23-M is a 12V/25W open frame Power Supply with remote sense. NPS20-M-series features adjustable output voltage, international efficiency level-V, less than 300mW no-load power consumption. Short-circuit protection on all outputs. Case overload protected at 110 to 160% of normal rating, (110% to 190% for NPS28-M). 30 to 50% above nominal output overvoltage protection. Compensated for 0.5V lead drop maximum. Will operate without remote sense connected. Reverse connection protected. This power supply output is fixed and can be adjustable.
- Universal input
- Less than 1U high
- High efficiency
- High MTBF
- Built in EMI filter
- 275µA at 50/60Hz, 264VAC Input safety ground leakage current
- 10/20ms 115/230VAC input line Hold-up time
- 120mV Ripple
- 0 to 50°C Ambient operating temperature range
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 90V AC to 264V AC | ||
| 1 | ||
| 0 to 50 °C | ||
| 4 A | ||
| 2.1 A | ||
| 12 V | ||
| 12 V | ||
| 25 W | ||
| 40W @ 200LFM | ||
| Industrial, ITE & Medical | ||
| Adjustable, Fixed |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8504409510 |
| Schedule B: | 8504408500 |
