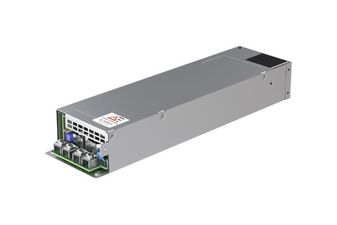

NGB1200S48K
AC/DC Power Supply Single-OUT 48V 25A 1200W Chassis Mount
Click image to enlarge
Manufacturer:Advanced Energy
Product Category:
Power Supplies, AC / DC Converters, AC / DC Open Frame Power Supplies
Avnet Manufacturer Part #: NGB1200S48K
Secondary Manufacturer Part#: NGB1200S48K
-
RoHS 10 Compliant -
Tariff Charges
NGB1200S48K is a NGB1200 series single output medical and industrial grade AC to DC power supply. This AC to DC power supply features output overvoltage, short circuit, thermal protection and overload protection and 76.2mm x 266.7mm x 40.6mm (W x L x H) form factor with built-in fan. Safety approved by IEC/UL/EN60601-1-1, 3rd edition and IEC/UL/EN62368-1.
- 48V output voltage, 25A output current, 1200W output power
- Screw terminals (Class I) input /output terminations
- 85 to 264VAC universal input, meets Class B emissions levels
- 10+ years electrolytic capacitor life
- Operating temperature range from -20°C to 70°C
- Meets 4th edition/heavy industrial EMC
- Less than 100uA leakage current
- 3 years warranty
- Efficiency of 90% typical
- No load input power of 0.5W
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 85V AC to 264V AC | ||
| 25 A | ||
| 48 V | ||
| Adjustable, Fixed |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8504409540 |
| Schedule B: | 8504406001 |
Factory Lead Time:
