LCM600Q-A
AC/DC Front End Power Supply (PSU), 1 Output, Fixed, 600 W, 24 V, 27 A, LCM600 Series

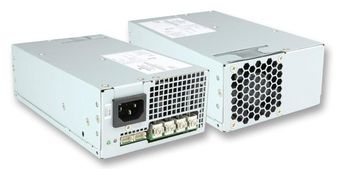

Click image to enlarge
Manufacturer:Advanced Energy
Product Category:
Power Supplies, AC / DC Converters, AC / DC Front End Rack Mount Power Supplies
Avnet Manufacturer Part #: LCM600Q-A
Secondary Manufacturer Part#: LCM600Q-A
-
RoHS 10 Compliant -
Tariff Charges
The LCM600Q-A is a 1-output 600W front-end AC/DC Power Supply with adjustable and fixed output. It offers 89% at full load efficiency and 0.99 typical power factor.
- Variable speed smart fans
- DSP controlled front end
- ±20% Adjustment range
- Margin programming
- OR-ing FET
- 20ms Minimum for main O/P at full rated load
- Power line transient - MOV directly after the fuse
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 85V AC to 264V AC | ||
| 1 | ||
| -40 to 70 °C | ||
| 27 A | ||
| 27 A | ||
| 600 W | ||
| 24 V | ||
| 24 V | ||
| Industrial, ITE & Medical | ||
| Fixed | ||
| LCM600 Series |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8504409540 |
| Schedule B: | 8504406001 |
Factory Lead Time:
