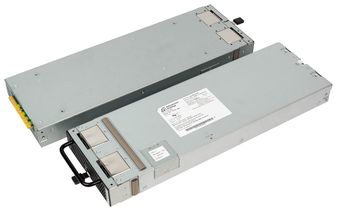

LCM4000HV-P-S
AC/DC Front End Power Supply (PSU), 1 Output, Adjustable, Fixed, 4 kW, 250 V, 16 A, LCM4000HV Series
-
RoHS 10 Compliant -
Tariff Charges
Advanced Energy’s Artesyn LCM4000HV series and associated LCM12K mounting shelf has been designed specifically to provide a centralized current source for medium to large scale LED lighting and horticulture applications. The output of each 4 kW block provides flicker free current source from 0 to 16A at an output voltage range between 100VDC to 300VDC. High nominal operating voltage provides the benefits of lower cost standard wiring and higher efficiency with minimal voltage drop over long distance. It is UL 62368-1 listed, CSA 62368-1 listed, EN 62368-1 listed, IEC 62368-1 listed, CB certificate and report (IEC 62368-1/IEC 60950-1).
- Pluggable 4KW module for shelf use
- 311 to 528VAC input range
- Current source output mode, 250VDC output voltage, 0A output current (default output settings)
- 4000W output power
- Size is 480mm x 140mm x 40.3mm
- Variable speed smart fans
- Dust control for fan cooling, DSP controlled
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 311V AC to 528V AC | ||
| 1 | ||
| 16 A | ||
| 4 kW | ||
| 250 V | ||
| ITE & LED Lighting | ||
| Adjustable, Fixed | ||
| LCM4000HV Series |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8504409540 |
| Schedule B: | 8504406001 |
Factory Lead Time:
