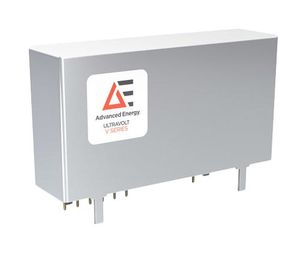

2V12-P0.8

2V12-P0.8 is a vertical, micro-sized ultravolt V series high voltage biasing supply. It features low output ripple, temperature coefficient, and line regulation (Analog interface with integral voltage control and voltage/current monitors) Integrated reverse polarity, short-circuit/arc, and overcurrent protection. With a footprint under 2.54cm² (1in²), this module is perfect for applications with limited board space. Suitable for bias supplies, electrostatic chucks, hand held x-ray florescence (XRF), avalanche photo diodes (APD, photomultiplier tubes (PMT), silicon detector (SiD), X-ray flat panel detector (FPD) and ionization chamber detector applications.

• 12V DC nominal input voltage
• Positive output polarity
• 0.8W output power
• 0 to 2000VDC output voltage
• Small-footprint, lightweight, PCB-mountable package
• Design power subsystems around product needs — not high voltage module constraints
• Achieve higher precision than proportional-control high voltage supplies
• Enhance application performance through responsive control of high voltage output
• Increase power subsystem robustness and reliability
• Tight line/load regulation and self-restoring output voltage
