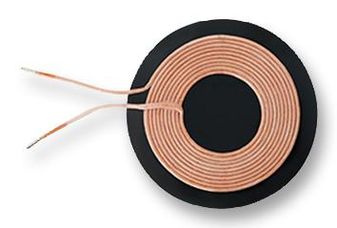

AWCCA-50N50H40-C01-B
Charging Coil, Wireless, AWCCA-50N50, 24 µH, ± 10%, 0.072 ohm, 1 Coil, 1 Layer
Click image to enlarge
Manufacturer:Abracon
Product Category:
Inductors, Wireless Charging Coils
Avnet Manufacturer Part #: AWCCA-50N50H40-C01-B
Secondary Manufacturer Part#: AWCCA-50N50H40-C01
-
RoHS 10 Compliant -
Tariff Charges
- Wireless Charging Coil for Transmitter or Receiver applications, (6.3µH & 24µH options)
- Outline Dimensions: 50mm x 50mm, height options 3.5mm, 4.0mm or 5.0mm.
- For Tx or Rx Applications.
- High permeability shielding to protec
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 5.7 A | ||
| 72 mOhm | ||
| 24 uH | ||
| 10 | ||
| Board Mount | ||
| 1 | ||
| 1 | ||
| 85 °C | ||
| -25 °C | ||
| 50 mm | ||
| 50 mm | ||
| AWCCA-50N50 Series | ||
| 4 mm | ||
| 165@100kHz | ||
| 27 A | ||
| 2.9 MHz |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8504504000 |
| Schedule B: | 8504500000 |
Factory Lead Time:
