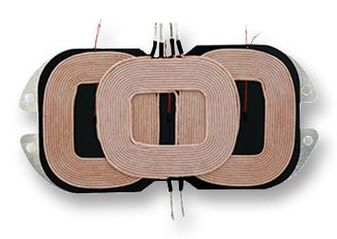

AWCCA-107T52H40-C01-B
Charging Coil, Wireless, 11.5 uH / 12 uH, ± 10%
Click image to enlarge
Manufacturer:Abracon
Product Category:
Inductors, Wireless Charging Coils
Avnet Manufacturer Part #: AWCCA-107T52H40-C01-B
Secondary Manufacturer Part#: AWCCA-107T52H40-C01-B
-
RoHS 10 Compliant -
Tariff Charges
- Wireless Charging Transmitter Coil Array
- Outline Dimensions: 107.95mm x 52.5mm x 4mm
- Linear Array of Primary Coils, 2 lower coils (12.0µH), 1 upper coil (11.5µH).
- For Tx applications working with 12V
- High permeability shielding to protect sensitive electronics
- Durable construction
- RoHS / RoHS II Compliant & Pb free
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 7.5 A | ||
| 56 | ||
| 12 uH | ||
| 10 | ||
| Board Mount | ||
| 3 | ||
| 1 | ||
| 85 °C | ||
| -25 °C | ||
| 4 mm | ||
| 107.95 mm | ||
| AWCCA-107T52 Series | ||
| 52.5 mm | ||
| 80@100 | ||
| 18 A | ||
| 7 |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8504504000 |
| Schedule B: | 8504500000 |
Factory Lead Time:
