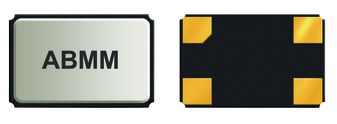

ABMM-25.000MHZ-B2-T
Crystal, Surface Mount, 25 MHz, SMD, 7mm x 5mm, 50 ppm, 18 pF, 20 ppm, ABMM Series
Click image to enlarge
Manufacturer:Abracon
Product Category:
Clock & Timing, Crystals
Avnet Manufacturer Part #: ABMM-25.000MHZ-B2-T
Secondary Manufacturer Part#: ABMM-25.000MHZ-B2-T
-
RoHS 10 Compliant -
Tariff Charges
The ABMM-25.000MHZ-B2-T is a 7 x 5 x 1.3mm 20ppm ceramic surface-mount microprocessor Crystal features AT-strip cut offers a tight tolerance & stability. The ABMM series for use with the computers, modems, microprocessors, PCMCIA, communication and test equipment. It is suitable for reflow profile.
- Fundamental operation mode
- 50O Maximum equivalent series resistance
- 7pF Maximum shunt capacitance
- 500µW Maximum drive level
- 500MO at 100VDC Minimum insulation resistance
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| CSMD | ||
| 7mm x 5mm x 1.3mm | ||
| 25 MHz | ||
| Surface Mount | ||
| Microprocessor | ||
| 40 Ohm | ||
| 50 ppm | ||
| 20 ppm | ||
| 18 pF | ||
| 4 | ||
| 70 °C | ||
| -20 °C | ||
| ABMM Series |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8541600060 |
| Schedule B: | 8541600060 |
Ships
in 1 bus. day
