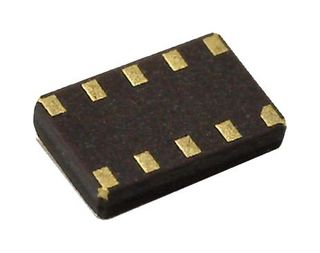

AB-RTCMC-32.768KHZ-B5ZE-S3-T
RTC IC, YY-MM-DD-DW, HH:MM:SS, 12Hr / 24Hr, I2C, 1.2 V to 5.5 V, 10 Pins, SMD
Click image to enlarge
Manufacturer:Abracon
Product Category:
Clock & Timing, Real Time Clocks
Avnet Manufacturer Part #: AB-RTCMC-32.768KHZ-B5ZE-S3-T
Secondary Manufacturer Part#: AB-RTCMC-32.768KHZ-B5ZE-S3-T
-
RoHS 10 Compliant -
Tariff Charges
- With state-of-the-art RTC Technology by Micro Crystal AG
- RTC module with built-in crystal oscillating at 32.768 kHz
- 1 MHz Fast-mode Plus (Fm+) two-wire I2C interface
- Wide Interface operating voltage: 1.6 – 5.5 V
- Wide clock operating voltage: 1.2 – 5.5 V
- Ultra low power consumption: 130 nA typ @ 3.0V / 25°C
- Provides year, month, day, weekday, hours, minutes, seconds
- Freely programmable Alarm and Timer functions with interrupt capability
- Low voltage detector, internal power on reset
- Battery backup input pin and switch-over circuit
- INT_1 can be programmed either as interrupt or clock output (open-drain)
- Programmable clock output for peripheral devices (32.768 kHz, 16.384 kHz, 8192 Hz, 4096 Hz, 1024 Hz, 32 Hz and 1 Hz)
- Programmable offset register for frequency adjustment
- I2C slave address: read D1h, write D0h
- Small and compact package size: 3.7 x 2.5 x 0.9 mm. RoHS-compl
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| YY-MM-DD-DW | ||
| I2C | ||
| 10 | ||
| 85 °C | ||
| -40 °C | ||
| 5.5 Vdc | ||
| 1.2 Vdc | ||
| HH:MM:SS, 12Hr / 24Hr |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8541600010 |
| Schedule B: | 8541600060 |
Ships
in 1 bus. day
