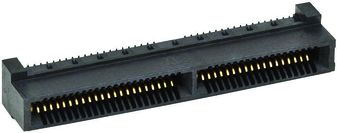

SPD08-080-RB-TR

The High-Speed board-to-board Card-Edge Connector SPD08 is suitable for a wide variety of applications: datacom systems, enterprise servers, telecommunications equipment, defense and test applications. The SPD08 connector can also be used in several different design applications. These include: • Mezzanine board stacking designs requiring transmission of high-speed (up to 15 Gbps), high density, controlled impedance signals • Wire-to-board designs requiring transmission of high speed signals (up to 25 Gbps)

• Supports High-speed Board-to-board Connections
  • Controlled impedance, crosstalk limiting contact design supports speeds up to 15 Gbps (at 30 mm stack height)
  • Embedded ground plane within riser card limits row-to-row crosstalk and enhances signal integrity
  • Supports XAUI, PCI Express (Gen 1/2/3), SATA and other application speeds
• Flexible Stacking Height and Robust Connection
  • Supports flexible stacking height (16-40 mm) with the use of a PCB intermediate riser card
  • Robust contact design is tolerant of misalignment, provides a reliable connection and supports blind mate
• High Density Board Footprint
  • High density (0.8 mm pitch), two-row design conserves board space and simplifies trace routing
• Flexible Design Options
  • 20-200 contact positions
  • Available with optional latches for robust mechanical stability
  • 0.5A current rating per contact for mixed signal and pow
