N3431-6202RB

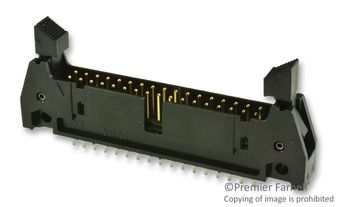

Pin Header, Short Latch, Wire-to-Board, 2.54 mm, 2 Rows, 34 Contacts, Through Hole Straight, 3000
Click image to enlarge
Manufacturer:3M
Product Category:
Connectors, PC Board Connectors, Wire to Board Connectors
Avnet Manufacturer Part #: N3431-6202RB
Secondary Manufacturer Part#: 7100252389
-
RoHS 10 Compliant -
Tariff Charges
The 3000 series Four-wall Header with copper alloy contacts and a glass-filled polycyclohexylenedimethylene terephthalate insulator. The high temperature insulator suitable for no lead soldering operations. It is suitable for reflow soldering using paste in hole techniques.
- Standard ejector latches
- Mounting holes for securing header to board
- Optional polarizing posts
- 1 x 10?O at 500VDC Insulation resistance
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| PCT (Polychlorinated Terphenyl) | ||
| Straight | ||
| Copper Alloy | ||
| Gold | ||
| Header | ||
| Black | ||
| Matte Tin | ||
| 260 | ||
| Through Hole | ||
| MSL 1 - Unlimited | ||
| -55 to 105 °C | ||
| 2.5400 mm | ||
| 8.6 mm | ||
| 62.61 x 8.6 x 24.6 mm | ||
| 24.6 mm | ||
| 62.61 mm | ||
| Solder |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | PROJECTED FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694051 |
| Schedule B: | 8536695050 |
Factory Lead Time:
