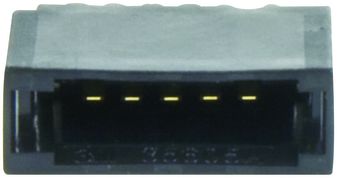

35605-5153-A00PE
Conn Power HDR 5 POS 3mm Solder RA SMD 5 Terminal 1 Port
Click image to enlarge
Manufacturer:3M
Product Category:
Connectors, Power Connectors
Avnet Manufacturer Part #: 35605-5153-A00PE
Secondary Manufacturer Part#: 7000090453
-
RoHS 10 Compliant -
Tariff Charges
- Accepts one or two Power Clamp Wiremount Sockets
- Accepts Branch and Terminator Connectors
- End to end stackable at 25.4 mm pitch on PCB
- Integrated press fit board retention pins retain the connector to the board during wave soldering
- CC-Link Communication Interconnect Standard
- One Touch latching mechanism maintains a reliable interconnection in demanding field applications
- Keyed to prevent reverse insertion of Sockets
- Polarization options ensures proper interconnection of mated connectors
- RoHS Compliant.
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| PBT (Polybutylene Terephthalate) | ||
| Right Angle | ||
| Copper Alloy | ||
| Gold | ||
| Header | ||
| Gold | ||
| 260 | ||
| Surface Mount | ||
| 1 | ||
| -20 to 75 °C | ||
| 3.0000 mm | ||
| 18 mm | ||
| 25.4 x 18 x 9.3 mm | ||
| 9.3 mm | ||
| 25.4 mm | ||
| Solder | ||
| Power |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694040 |
Factory Lead Time:
