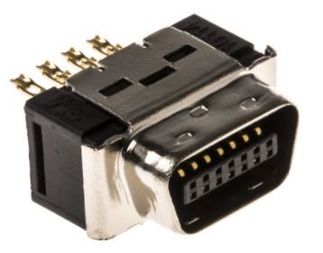

10114-3000PE
D Sub Connector, Mini D (Ribbon Connector), Plug, MDR 101 Series, 14 Contacts, Solder
Click image to enlarge
Manufacturer:3M
Product Category:
Connectors, I/O Connectors, SCSI Connectors
Avnet Manufacturer Part #: 10114-3000PE
Secondary Manufacturer Part#: 7100206785
-
RoHS 10 Compliant -
Tariff Charges
3M Mini D Ribbon (MDR) Connectors.050 Solder Plug Connector - Shielded"
- Wiper-on-wiper contact for reliable repetitive plugging
- Solder cup termination requires no special tooling
- Accepts a wide variety of discrete wire (24 to 30 AWG) cable construction
- Contacts: 14, 20, 26, 36, 40 and 50
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Steel | ||
| Straight | ||
| Copper Alloy | ||
| Gold | ||
| Plug | ||
| Gold | ||
| Cable Mount | ||
| 1 | ||
| -55 to 105 °C | ||
| 2.5400 mm | ||
| 19.3 mm | ||
| 18.2 x 19.3 x 9.1 mm | ||
| 9.1 mm | ||
| 18.2 mm | ||
| Solder Cup | ||
| SCSI |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694051 |
| Schedule B: | 8536694030 |
Factory Lead Time:
