制造商:
Vishay
产品分类:
电阻器,
表面贴装电流检测电阻器

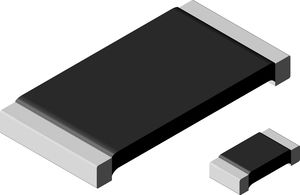

WSL2512R0200FEA18
WSL-2512-18 .02 1% EA e3
安富利制造商模型#:
WSL2512R0200FEA18
RoHS 10 Compliant
WSL-2512-18 .02 1% EA e3
技术参数
- Ideal for all types of current sensing, voltage division and pulse applications including switching and linear power supplies, instruments, power amplifiers
- Proprietary processing technique produces extremely low resistance values (down to 0.0005 )
- Specially selected and stabilized materials allow for high power ratings (2 x standard WSL rating)
- All welded construction
- Solderable terminations
- Very low inductance 0.5 nH to 5 nH
- Excellent frequency response to 50 MHz
- Solid metal nickel-chrome or manganesecopper alloy resistive element with low TCR (< 20 ppm/°C)
- Low thermal EMF (< 3 μV/°C)
- AEC-Q200 qualified available
技术特性
查找类似的料号|
|
描述 | 值 |
|---|---|---|
|
|
电阻器类型 | High Power |
|
|
额定功率 | 2.0000 W |
|
|
产品长度 | 6.35 mm |
|
|
电阻 | 20 MOhm |
|
|
温度系数 | 75.0000 ppm/°C |
|
|
产品范围 | WSL18 Series |
|
|
最高工作温度 | 170 °C |
|
|
电阻器外壳/封装 | 2512 |
|
|
最低工作温度 | -65 °C |
|
|
产品宽度 | 3.18 mm |
|
|
电阻技术 | Metal Strip |
|
|
耐受性 | 1 |
|
|
资质 | AEC-Q200 |
ECCN / UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
| 计划交货期 B: | PARTS... |
| HTSN: | PARTS... |
文档
您需要登录才能查看内容
文档
| 标题 | 下载 | 类别 | 发布日期 |
|---|---|---|---|
| WSL and WSL-18 (High Power) Short Time Overload (STOL) Rating will be removed from the datasheet. | Errata-Sheets | 20200205 |
