制造商:
Vishay
T70HF40
二极管模块, 400 V, 70 A, 1.35 V, 单路, VS-T7 Series
安富利制造商模型#:
VS-T70HF40
RoHS 10 Compliant

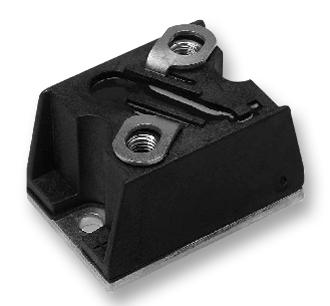

This T-modules uses standard recovery power rectifier diodes. The semiconductors are electrically isolated from the metal base, allowing common heatsink and compact assembly to be built.
Applications include power supplies, battery charges, welders, motor controls and general industrial current rectification.
技术参数
- Electrically isolated base plate
- Types up to 1200 VRRM
- 3500 VRMS isolating voltage
- Simplified mechanical designs, rapid assembly
- High surge capability
- Large creepage distances
- UL E78996 approved
- Compliant to RoHS directive 2002/95/EC
- Designed and qualified for industrial level
- Maximum Repetitive Peak Reverse Voltage: 400V
技术特性
查找类似的料号|
|
描述 | 值 |
|---|---|---|
|
|
产品范围 | VS-T70HF Series |
|
|
反向重复峰值电压 | 400 |
|
|
二极管模块配置 | Single |
|
|
最高工作温度 | 150 |
|
|
二极管外壳样式 | D-55 |
|
|
引脚数 | 2 |
|
|
正向电压最大值 | 1.35 |
|
|
二极管安装 | Screw Mount |
|
|
正向平均电流 | 70 |
ECCN / UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
| 计划交货期 B: | PARTS... |
| HTSN: | PARTS... |
