制造商:
Vishay

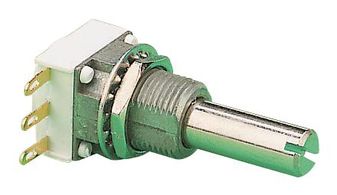

P11S1V0FLSY00103KA
旋转电位器, 金属陶瓷, 10 kohm, 1 W, ± 10%, P11S系列, 1 转, 线性
安富利制造商模型#:
P11S1V0FLSY00103KA
RoHS 6 Compliant
NCNR
The P11S1V0FLSY00103KA is a 12.5mm Modular Panel Potentiometer with cermet element and single turn panel control. Low current compatibility and power rating of 1W and temperature coefficient of ±150ppm, Up to 21 indent positions.
技术参数
- 12.5 mm square single turn panel control
- Five shaft diameters and 29 terminal styles
- Multiple assemblies - up to seven modules
- Tests according to CECC 41000 or IEC 60393-1
- Industrial, military, and aeronautics applications
- Low current compatibility
- Shaft and panel sealed version
- Up to twenty-one indent positions
- Rotary and push/push switch options
- Concentric shafts
技术特性
查找类似的料号|
|
描述 | 值 |
|---|---|---|
|
|
产品宽度 | 12.5 mm |
|
|
最高工作温度 | 125 °C |
|
|
轴径 | 6 mm |
|
|
温度系数 | 150 ppm/°C |
|
|
最低工作温度 | -55 °C |
|
|
耐受性 | 10 |
|
|
额定功率 | 1 W |
|
|
转弯数量 | 1 |
|
|
轴长 | 25 mm |
|
|
产品范围 | P11S Series |
|
|
电位器安装 | Panel Mount |
|
|
调整类型 | Slotted |
|
|
电位器端子 | Solder Lug |
|
|
电阻技术 | Cermet |
|
|
轨道锥度 | Linear |
|
|
跟踪阻力 | 10 kOhm |
|
|
帮派数量 | 1 |
|
|
产品长度 | 36.1 mm |
ECCN / UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
| 计划交货期 B: | 8533210090 |
| HTSN: | 8533210010 |
