制造商:
Vishay
MSE1PGHM3/89A
1.0A, 400V, ESD PROTECTION, SM RECT
安富利制造商模型#:
MSE1PGHM3/89A
RoHS 10 Compliant
1.0A, 400V, ESD PROTECTION, SM RECT
技术参数
- Very low profile -typical height of 0.65 mm
- Ideal for automated placement
- Oxide planar chip junction
- Low forward voltage drop, low leakage current
- ESD capability
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260°C
- AEC-Q101 qualified
- Max. repetitive peak reverse voltage is 400V
技术特性
查找类似的料号|
|
描述 | 值 |
|---|---|---|
|
|
最高工作温度 | 175 |
|
|
正向电压最大值 | 1.1 |
|
|
引脚数 | 2 |
|
|
正向平均电流 | 1 |
|
|
反向重复峰值电压 | 400 |
|
|

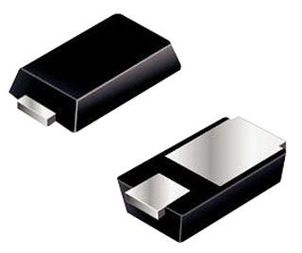

二极管外壳样式 | MicroSMP (DO-219AD |
|
|
反向恢复时间 | 780 |
|
|
二极管配置 | Single |
ECCN / UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
| 计划交货期 B: | PARTS... |
| HTSN: | PARTS... |
