制造商:
Vishay
MRS25000C3300FCT00
通孔电阻器, 330 ohm, 350 V, 轴向引线, 600 mW, ± 1%, MRS25系列
安富利制造商模型#:
MRS25000C3300FCT00
第二制造商零件#: 232215623301
RoHS 10 Compliant

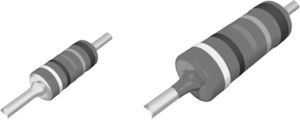

The Vishay MRS25 series resistors are axial leaded metal film resistors based on thin film technology. These resistors are coated with lacquer which provides electrical, mechanical and climatic protection. MRS25 series metal film resistors are available in standard resistance values from 1ohm to 10Mohm and ±1% tolerance.
技术参数
- Available in DIN0207 size
- Power dissipation is 0.6W
- Temperature coefficient (TCR) of ±50ppm/K
- Operating temperature range -55°C to +155°C
- Operating voltage of 350V
- Suitable replacement for MRS25 are MBB/SMA 0207 professional
技术特性
查找类似的料号|
|
描述 | 值 |
|---|---|---|
|
|
产品长度 | 6.5 |
|
|
产品范围 | MRS25 Series |
|
|
电阻器类型 | Professional |
|
|
额定功率 | 0.6 W |
|
|
最低工作温度 | -55 |
|
|
最高工作温度 | 155 |
|
|
电阻器外壳/封装 | Axial Leaded |
|
|
耐受性 | 1 |
|
|
电阻 | 330 Ohm |
|
|
温度系数 | 50.0000 ppm/°C |
|
|
电阻技术 | Metal Film (Thin Film) |
ECCN / UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
| 计划交货期 B: | 8533210090 |
| HTSN: | 8533210090 |
