制造商:
Vishay
HVR2500001004JR500
HVR25 5% R5 1M0
安富利制造商模型#:
HVR2500001004JR500
第二制造商零件#: 230624123105
RoHS 10 Compliant

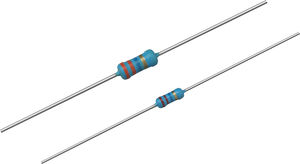

A homogenous film of metal alloy is deposited on a high grade ceramic body. After a helical groove has been cut in the resistive layer, tinned electrolytic copper wires are welded to the end-caps. The resistors are coated with a blue, non-flammable lacquer, which provides electrical, mechanical, and climatic protection.
技术参数
- Technology: Metal film
- High pulse loading (up to 10 kV) capability
- Small size (0207/0411)
- Compatible with lead (Pb)-free and lead containing soldering processes
- Rated Dissipation 0.25W
技术特性
查找类似的料号|
|
描述 | 值 |
|---|---|---|
|
|
电阻器外壳/封装 | Axial Leaded |
|
|
电阻器类型 | High Voltage |
|
|
最低工作温度 | -55 °C |
|
|
耐受性 | 5 |
|
|
额定功率 | 0.25 W |
|
|
产品长度 | 7.5 |
|
|
产品范围 | HVR25 Series |
|
|
温度系数 | 200.0000 ppm/°C |
|
|
电阻 | 1 MOhm |
|
|
电阻技术 | Metal Film |
ECCN / UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
| 计划交货期 B: | PARTS... |
| HTSN: | PARTS... |
