制造商:
Vishay
GPP20M-E3/73
2A,1000V,STD,GPP RECT,DO-15
安富利制造商模型#:
GPP20M-E3/73
RoHS 10 Exempt
2A,1000V,STD,GPP RECT,DO-15
技术参数
- Glass passivated chip junction
- Low forward voltage drop
- Low leakage current, typical IR less than 0.1 μA
- High forward surge capability
- Meets environmental standard MIL-S-19500
- Solder dip 275 °C max. 10 s, per JESD 22-B106
- Compliant to RoHS directive 2002/95/EC and in accordance to WEEE 2002/96/EC
- Repetitive peak reverse voltage VRRM 1000 V max
技术特性
查找类似的料号|
|
描述 | 值 |
|---|---|---|
|
|
二极管配置 | Single |
|
|
引脚数 | 2 |
|
|
正向平均电流 | 2 |
|
|
反向重复峰值电压 | 1000 |
|
|
最高工作温度 | 150 |
|
|
正向电压最大值 | 1.1 |
|
|

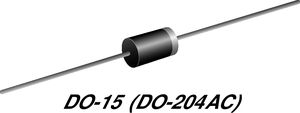

二极管外壳样式 | DO-15 |
ECCN / UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
| 计划交货期 B: | 8514400000 |
| HTSN: | 8541100080 |
