制造商:
Vishay

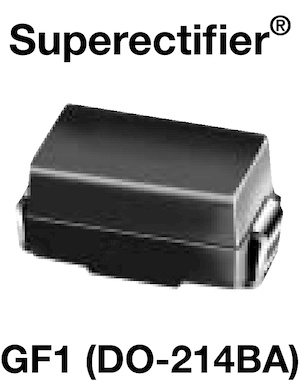

GF1J-E3/67A
标准功率二极管, 600 V, 1 A, 单, 1.1 V, 3 µs, 30 A
安富利制造商模型#:
GF1J-E3/67A
RoHS 10 Exempt
The GF1J-E3/67A is a surface-mount Glass-passivated Junction Rectifier with moulded epoxy over glass body and matte tin plated solderable leads. The cathode end is denoted by coloured band. It is suitable for use in general-purpose rectification of power supplies, inverters, converters and freewheeling diodes.
技术参数
- Colour band denotes cathode end polarity
- Superectifier structure for high reliability condition
- Ideal for automated placement
- Low forward voltage drop
- Low leakage current
- High forward surge capability
技术特性
查找类似的料号|
|
描述 | 值 |
|---|---|---|
|
|
最高工作温度 | 175 |
|
|
反向重复峰值电压 | 600 |
|
|
反向恢复时间 | 2 |
|
|
正向电压最大值 | 1.1 |
|
|
二极管配置 | Single |
|
|
引脚数 | 2 |
|
|
正向平均电流 | 1 |
|
|
二极管外壳样式 | DO-214BA |
ECCN / UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
| 计划交货期 B: | 8541100080 |
| HTSN: | 8541100080 |
