制造商:
Vishay
CRCW04020000Z0EDHP

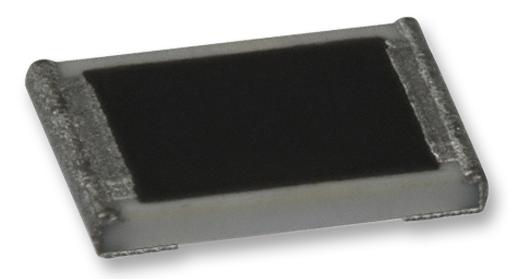

SMD片式电阻, 0 ohm, 50 V, 0402 [1005公制], 63 mW, CRCW-HP Series
安富利制造商模型#:
CRCW04020000Z0EDHP
RoHS 10 Exempt
The Vishay CRCW-HP e3 series are automotive grade pulse proof, high power thick film chip resistors. The resistance range includes E96 and E24 decade values from 1ohm to 1Mohm. CRCW-HP e3 series resistors have pure tin solder contacts on the Ni barrier layer that provides compatibility with reflow soldering process. They are ideal for high repetitive surge and pulse loading applications. These resistors series are perfect choice for most fields of power measurement electronics where reliability, stability, high power rating and excellent pulse load performance are of major concern. CRCW-HP e3 series have power rating double than the D/CRCW e3 series.
技术参数
- Automotive grade AEC-Q200 qualified
- EIA 0402, 0603, 0805, 1206, 1210, 1218, 2010 and 2512 standard case sizes available
- Excellent pulse load capability and enhanced power rating
- Double side printed resistor element and protective overglaze
- Available in 50V, 75V, 150V, 200V, 400V and 500V operating voltages
- Available in ±0.5%, ±1% and ±5% tolerance and ±200ppm/K, ±100ppm/K temperature coefficient values
- Zero ohm jumpers are available for all sizes with very high current
- Operating temperature range from -55°C to 155°C
- Superior antisurge and pulse characteristics compared to D/CRCW e3 series
- 0.2W, 0.25W, 0.5W, 0.75W, 1W and 1.5W rated dissipations at 70°C
技术特性
查找类似的料号|
|
描述 | 值 |
|---|---|---|
|
|
最高工作温度 | 155 °C |
|
|
产品宽度 | 0.5 mm |
|
|
目前评级 | 3 A |
|
|
产品范围 | CRCW-HP e3 Series |
|
|
电阻器外壳/封装 | 0402 [1005 Metric] |
|
|
电阻安装 | Surface Mount |
|
|
电阻技术 | Thick Film |
|
|
最低工作温度 | -55 °C |
|
|
额定功率 | 200 mW |
|
|
产品长度 | 1 mm |
ECCN / UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
| 计划交货期 B: | PARTS... |
| HTSN: | PARTS... |
