制造商:
Vishay
CMA02040X1009GB300

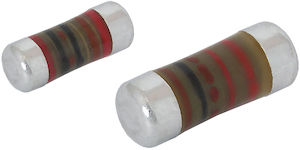

电阻, 金属电极无限面(MELF) 表面贴装, 10 ohm, 200 V, 250 mW, ± 2%, CMA 0204系列, 碳膜
安富利制造商模型#:
CMA02040X1009GB300
第二制造商零件#: 231215921009
RoHS 10 Compliant
CMA0204 carbon film MELF resistors with advanced pulse load capability are the perfect choice for the protection of circuitry with signal or mains input lines from surge pulses. The resistors are also suitable for circuits exposed to high levels of electromagnetic interference or electrostatic discharge. The applications are in all fields of automotive, telecommunication, industrial, and medical equipment.
技术参数
- Special carbon film technology
- Surge voltage capability up to 4 kV 1.2/50 μs pulse
- ESD capability: 6 kV, human body model
- AEC-Q200 qualified
- Sulfur resistance verified according to ASTM B 809
技术特性
查找类似的料号|
|
描述 | 值 |
|---|---|---|
|
|
电阻 | 10 Ohm |
|
|
额定功率 | 0.25 W |
|
|
电阻器外壳/封装 | MELF |
|
|
最低工作温度 | -55 |
|
|
资质 | AEC-Q200 |
|
|
耐受性 | 2 |
|
|
产品范围 | CMA 0204 Series |
|
|
最高工作温度 | 125 |
|
|
电阻技术 | Carbon Film |
ECCN / UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
| 计划交货期 B: | PARTS... |
| HTSN: | PARTS... |
