制造商:
TE Connectivity

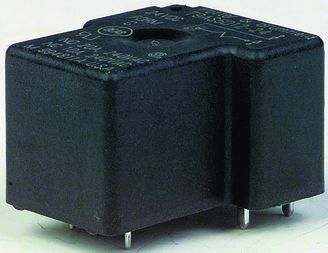

T9AS1D12-12
Electromechanical Relay SPST-NO 30A 12VDC 144Ohm Through Hole
安富利制造商模型#:
1-1393210-3
第二制造商零件#: T9AS1D12-12
RoHS 10 Exempt
Electromechanical Relay SPST-NO 30A 12VDC 144Ohm Through Hole
技术参数
- 30A switching in 1 form A (NO) and 20A in 1 form C (CO)
- Plastic sealed case available
- Meets UL 508 and 873 spacing - 3.18mm through air, 6.36mm over surface
- Option for load connections via 0.250”” (6.35mm) Q.C. terminals
- UL class F insulation system standard
技术特性
查找类似的料号|
|
描述 | 值 |
|---|---|---|
|
|
工作温度 | -55 to 85 °C |
|
|
产品尺寸 | 32.51 x 27.43 x 20.4 mm |
|
|
Maximum DC Voltage Rating | 28 V |
|
|
安装 | Through Hole |
|
|
触点材料 | Silver Cadmium Oxide |
|
|
Minimum Dropout Voltage | 1.2 Vdc |
|
|
Coil Resistance | 144 Ohm |
|
|
Relay Construction | Non-Latching |
|
|
Contact Arrangement | SPST-NO |
|
|
最高加工温度 | 260 °C |
|
|
Operate Time | 15 ms |
|
|
产品长度 | 32.51 mm |
ECCN / UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
| 计划交货期 B: | PARTS... |
| HTSN: | PARTS... |
