制造商:
TE Connectivity

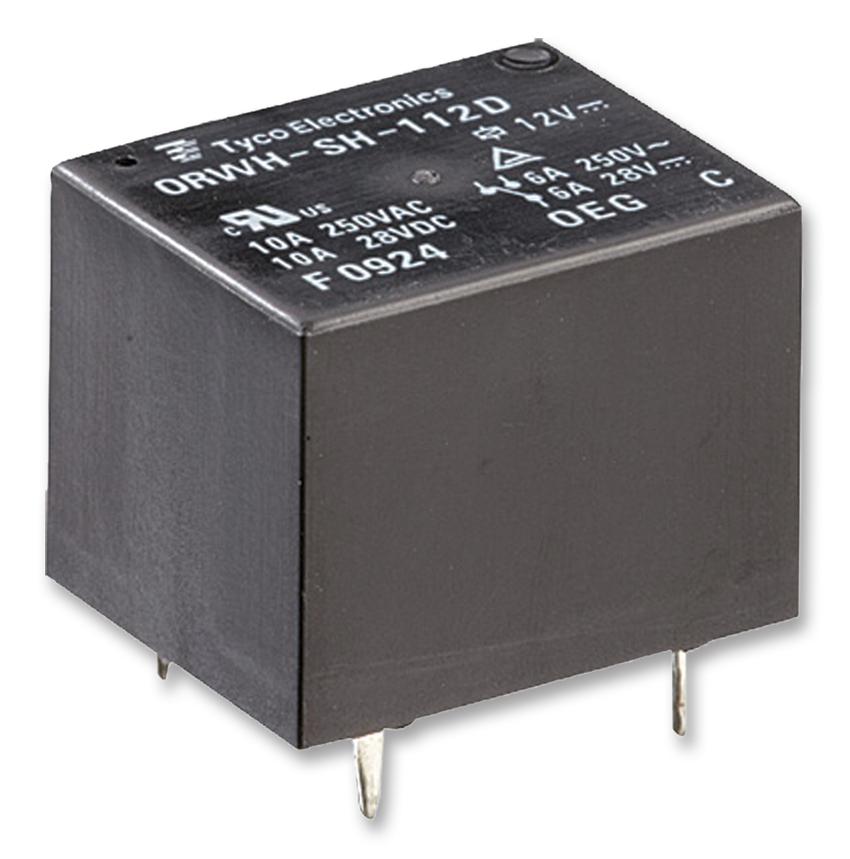

ORWH-SH-112D1F000
General Purpose Power Relay SPDT 277VAC 12VDC Through Hole Tube
安富利制造商模型#:
1-1721150-3
第二制造商零件#: ORWH-SH-112D1F, 000
RoHS 10 Compliant
General Purpose Power Relay SPDT 277VAC 12VDC Through Hole Tube
技术参数
- Compact relay with 1 Form C contact arrangement
- 10A switching capacity
- Flux proof or sealed type available
- 6kV dielectric strength type available
技术特性
查找类似的料号|
|
描述 | 值 |
|---|---|---|
|
|
Coil Resistance | 400 Ohm |
|
|
Contact Arrangement | SPDT |
|
|
引脚数 | 5 |
|
|
Operate Time | 10 ms |
|
|
触点材料 | Silver Zinc Oxide |
|
|
Maximum Pick-Up Voltage | 8.4 V |
|
|
DC Coil Voltage | 12 V |
|
|
Minimum Dropout Voltage | 1.2 V |
|
|
Maximum DC Voltage Rating | 28 V |
|
|
工作温度 | -30 to 85 °C |
|
|
Maximum Current Rating AC | 10 A |
|
|
Maximum Current Rating DC | 10 A |
|
|
安装 | Through Hole |
|
|
类型 | General Purpose Power Relay |
|
|
产品尺寸 | 19.2 x 15.5 x 15 mm mm |
|
|
系列名称 | ORWH |
|
|
终止方法 | PC Pin |
|
|
Relay Construction | Non-Latching |
|
|
Coil Current | 30 mA |
|
|
Maximum AC Voltage Rating | 277 V |
|
|
产品长度 | 19.2 mm |
